2024 Super Capacitor (EDLC)

GTCAP Super Capacitor (EDLC) Catalog

Green Tech (GTCAP®) design and produce advanced super capacitor cells, super capacitor modules and energy storage systems.

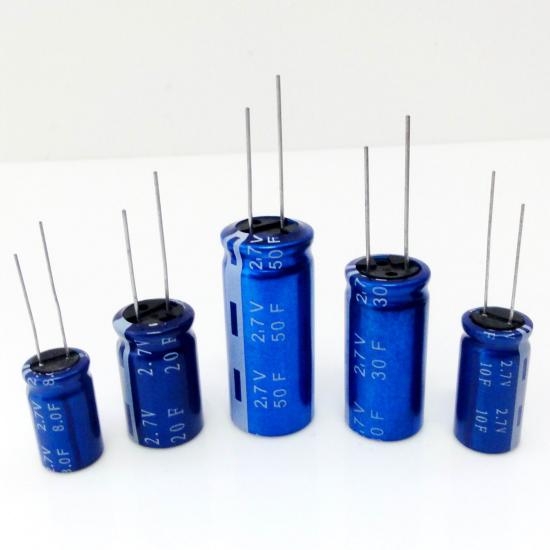

Super Capacitor Cell —— Radial Wire Leads

● Rated voltage: 2.7V and 3.0V

● Capacitance: 0.25F, 0.35F, 0.5F, 1.0F, 2F, 3.3F, 4.7F, 5F, 10F, 15F, 20F, 25F, 30F, 50F, 100F

● Cycle life: 500,000 duty times.

● Radial Wire Leads

● Operate temperature: - 40℃ ~ +70℃(SP series) , - 40℃ ~ +85℃ (SPH series)

● Application: Automobile data recorder,digital camera, smart TV set,smart control device,instrument,electric toys and apparatus etc.

Super Capacitor Cell —— Snap In Terminal

● Rated voltage: 2.7V and 3.0V

● Capacitance: 100F, 120F, 150F, 200F, 220F, 300F, 400F

● Cycle life: 500,000 duty times.

● Operate temperature: - 40℃ ~ +70℃(SP series) , - 40℃ ~ +85℃ (SPH series)

● Application: Medical equipment, UPS, printing machine,LED lighting, motor cold starting,wind powers system,elevator etc.

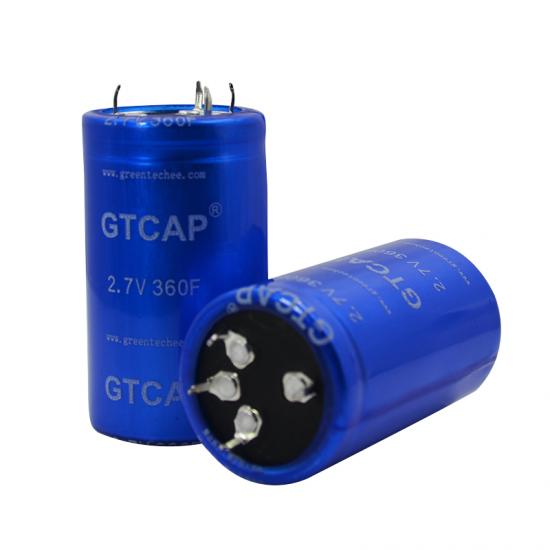

Super Capacitor Cell —— Pillar and Screw In Terminal

● Rated voltage: 2.7V

● Capacitance: 360F, 400F, 600F, 350F, 450F, 500F, 600F, 720F, 800F

● Cycle life1,000,000 duty times.

● Operatetemperature: - 40℃ ~+70℃

● Ultra low ESR

● Application: Medical equipment, UPS, printing machine,LED lighting, motor cold starting,wind powers

system,elevator etc.

Super Capacitor Cell —— Weldable and Threaded Terminal

● Rated voltage: 2.7V

● Capacitance: 650F, 1200F, 1500F, 2000F, 3000F, 5000F

● Cycle life1,000,000 duty times.

● Operatetemperature: - 40℃ ~+70℃

● Large power and ultra low ESR

● Application: Pitching control system of Wind Turbine Generator EV/HEV Solar energy conversion system

● Hybrid drive trains Mass transportation braking energy recovery system UPS/DVC Heavy duty machinery Locomotive engine start up system etc.

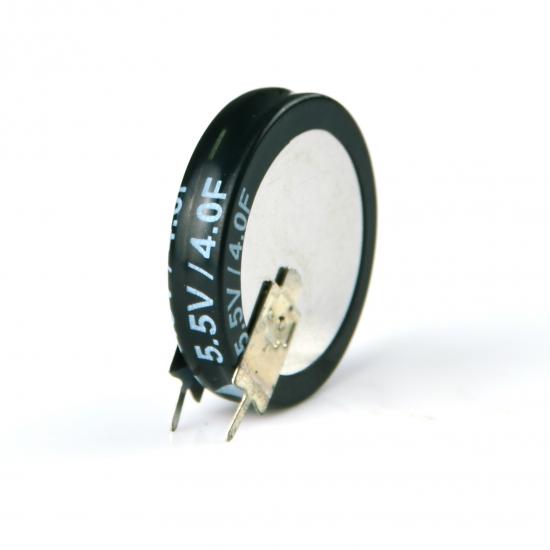

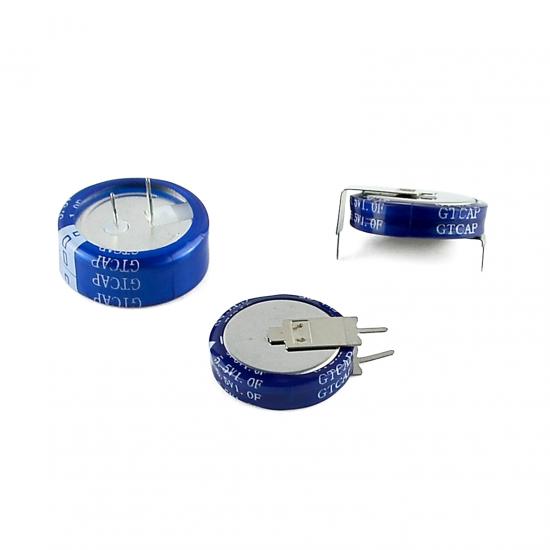

Super Capacitor Cell —— SE（-25℃~+70℃， 5.5V）and SEH(-40℃~+85℃,5.5V 3.6V) Seires

● Operatetemperature: -25℃~+70℃(SE), -40℃~+85℃（SEH）

● Rated voltage: 5.5V

● Capacitance: 0.1F, 0.22F, 0.33F, 0.47F, 1.0F, 1.5f, 2.0F

● Cycle life: 500,000 times

● Small size. good performance in keeping voltagestable.

● It can be the perfect back-uppower supplier.

● Application: Smart meters,electric cooker,electricwater heater,intelligent door lock,TVset,laptop, electronic toy,telephone,camera,VCR,medicalequipment etc.

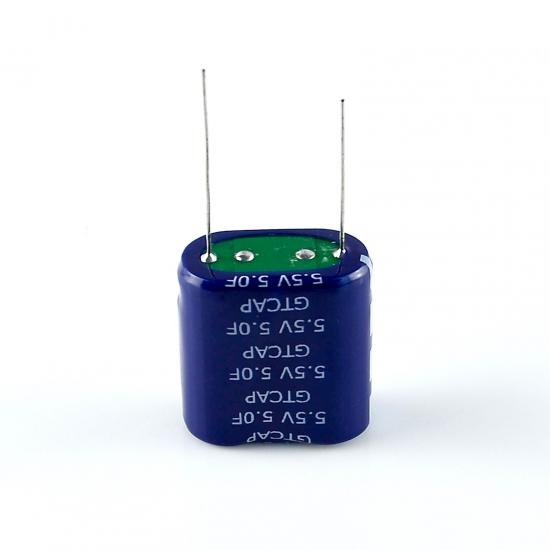

Super Capacitor Small Modules —— SM and SMH Series

● Operatetemperature: SM -40℃~+70℃, SMH-25℃~+85℃

● Ratedvoltage:SM 5.5V, 7.5V, SMH 5.0V

● Capacitance: 0.1F, 0.22F, 0.33F, 0.47F, 1F, 1.5F, 3.3F

● Cycle life: 500,000 times

● Application: Automobile data recorder,digital camera, smart TV set,smart control device, instrument,electric toys and apparatus etc. Medical equipment, UPS, printing machine,LED lighting, motor cold starting,wind powers system,elevator etc.

Super Capacitor Modules & Energy Storage Solutions

——Support customization

Feature:

Green Tech’s super capacitor module provides energy storage and power delivery in a compact,cost-effective modules. The modules can charge-discharge fast, all of these products will perform reliably for more than 1,000,000 times discharge-recharge cycles. The modules can be series connected up to higher voltage or parallel connected for larger energy requirements. The easy to connect, standard module allows system designers to focus upon use of the power and energy rather than how to assemble cells.

Application:

● Engine start: Telecommunicationsequipment,Tank,Truck,Carcold start;

● Energy recovery: Electric train,Hybrid bus, Elevator

● Back up power: Construction equipment, UPS, Heavy duty transportation,Cranes, Mining equipment, Electronic bicycle

● New energy resources: Solar LED street light. wind turbine pitch control,Solar power system,micro-grid.
