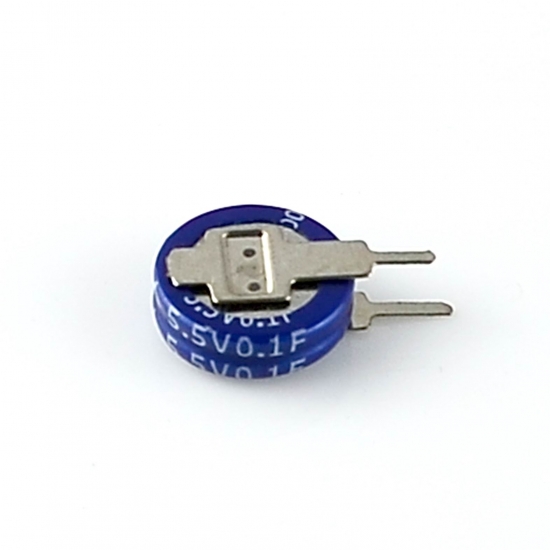

0.1F 5.5V Coin Type Super Capacitor Battery for Smart Meter

0.1F 5.5V Super Capacitor/Gold Capacitor

Feature

Application

How to order

   Part Number:  GTSE-5R5-104Z/C/V/H

GT	S	□		□ □ □		□ □ □		□		□
Brand	Super	Series		Rated Voltage		Capacitance		Tolerance		Terminal Type
Green	capacitor	Code	Series	Code	Voltage	Code	Value (F)	Code	Tolerance	Code	Terminal
Tech		P	Power	2R5	2.5V	104	0.1	J	±5%	H	Horizontal
		E	Energy	2R7	2.7V	224	0.22	K	±10%	V	Vertical
		M	Module	3R3	3.3V	474	0.47	M	±20%	C	Coin
		PH	Hi-Temp P	5R0	5.0V	105	1.0	U	-10%~20%	R	Radial
		EH	Hi-Temp E	5R5	5.5V	205	2.0	V	10%~30%	T	Thread
		MH	Hi-temp M	6R3	6.3V	475	4.7	Z	-20%~80%	N	Snap in
		PP	Big Power	012	12V	106	10			W	Weldable
		ML	Military	016	16V	206	20			P	Pillar
				024	24V	506	50			S	Screw in
				036	36V	107	100			L	Wire
				048	48V	367	360
				056	56V	407	400
				075	75V	657	650
				100	100V	158	1500
				120	120V	308	3000
				240	240V	508	5000
						728	7200
