CA501 175℃ High Temperature Wet Electrolytic Capacitor

Green Tech manufacture and export GTCAP CA501 175℃ high temperature wet tantalum capacitor, support customization.

  • Brand:

    GTCAP
  • Item No.:

    High Temperature Tan
  • Model:

    CA501
  • value:

    2.2μF~1200μF
  • votage:

    6.3V~125V
  • Feature:

    High temperature 175℃, long life
  • grade:

    A
  • Applications:

    Electronic equipment used at high-temp condition, such as oil down hole drilling, aerospace, satellite and ect.
  • product origin:

    China
Products description

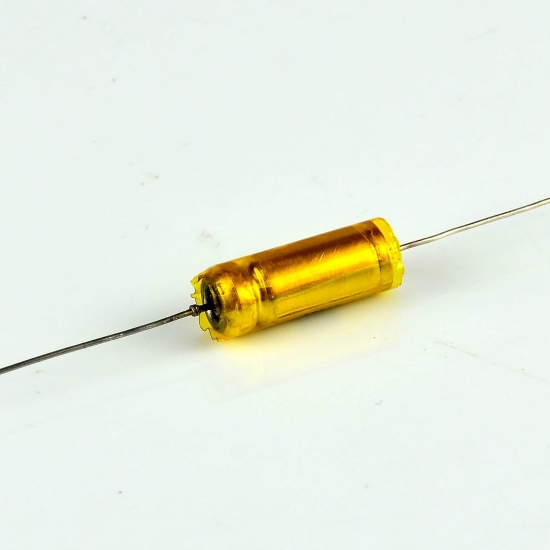

CA501 High-Temp Wet Tantalum Capacitor

(Glass sealed, for 175℃ operation)



Characteristics and Application

● Silver case, glass sealed, tubular, axial leads, high temperature sleeve, polar

● Good electric performance, high reliability, long life, low DF and LC.

● High temperature performance, can use at 175 ℃

● Suit for down-hole-drilling instrumentation and high temperature electronic devices DC or pulse circuit.

● Implementation of standards: QJ/PWV223-2008



Technical Performance

● Operation temperature: -55℃~+175℃ (>155℃ use derated Voltage)

●Capacitance Tolerance:K= ±10%;M=±20%;Q=-10%~+30%

● Leakage current:

25℃ I≤0.002CRUR(μA) or 2μA (whichever is greater)

85℃ I≤0.01CRUR(μA) or 10μA (whichever is greater)

175℃ I≤0.03 CRUR(μA) or 30μA (whichever is greater)



How to order (Part No.: GTCA501 686 K 063 4)

GT

CA501

686

K

063

4

Brand Name

Type

Capacitance

Tolerance

Rated voltage /DC

Case code

Green Tech

Silver case hi-temp. Wet

Tantalum Capacitor

686 68X106(pF)

This is expressed in picofarads. The first two digits are the significant figures. The third is the number of zeros to follow.

K=±10%
 M=±20%

6.3V=006

10V=010

 100V=100

125V=125

See table1
