(hermetic sealed)
Brief Introduction

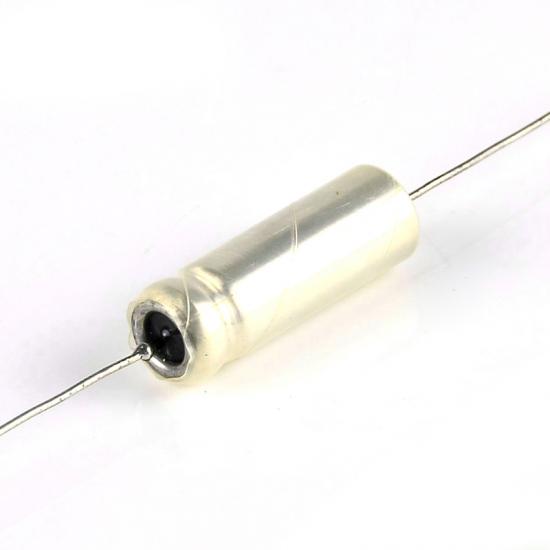

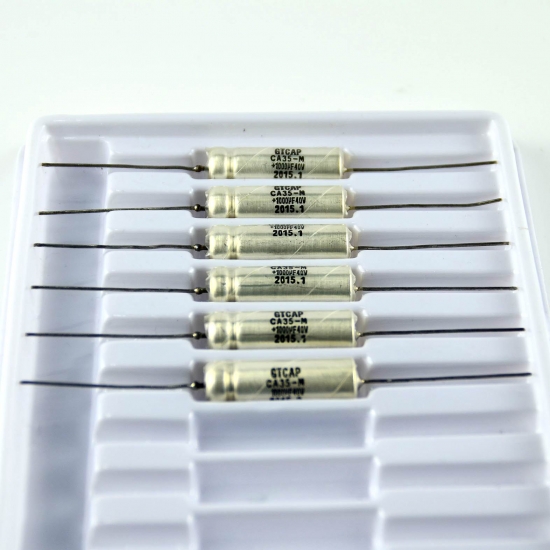

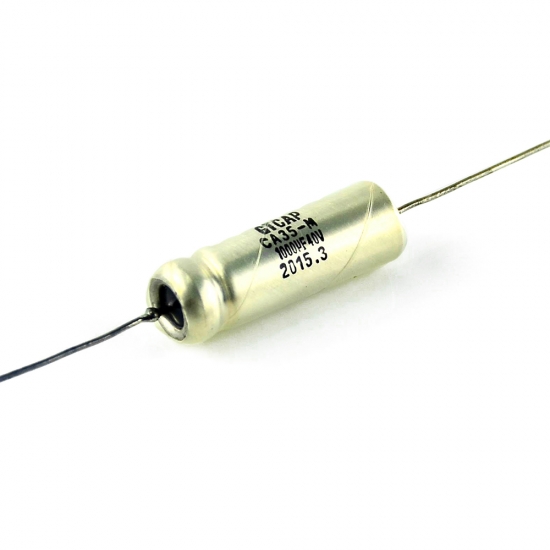

● CA35 series wet tantalum electrolytic capacitor is axial tantalum capacitor with silver-cased ,hermetic sealed, insulation sleeve.
● With polar axial leads are characterized in stable and excellent performances, and high reliability.
● CA35 Series meets the requirements of Chinese electronic industry standard SJ/T10030-91.
● Widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.
General Characteristics
● Operating Temperature Range: -55℃～+125℃(>85℃ with rated voltage derating);● Capacitance range: 1μF ~1500μF
● Capacitance Tolerance: K=±10%, M=±20%
● Voltage: 6.3V~125V
● DC Leakage: at +20℃, I0≤0.0008CRVR or 1μA(Whichever is greater);
at +85℃ and +125℃, I0≤0.0060 CRVR or 6μA(Whichever is greater)
How to order (GTCA35 107 K 0163)
|
GT |
CA35 |
107 |
K |
016 |
3 |
|
Brand Name |
Type |
Capacitance |
Tolerance |
DC voltage |
Case code |
|
Green Tech |
Series Wet Electrolytic Tantalum Capacitor |
107: 10X107(pF)This is expressed in picofarads. The first two digits are the significant figures. The third is the number of zeros to follow. |
K=±10% |
6.3V=006 |
See table 2 |
