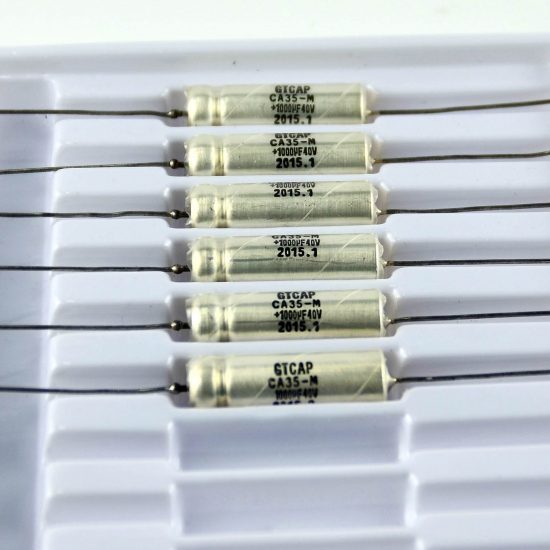

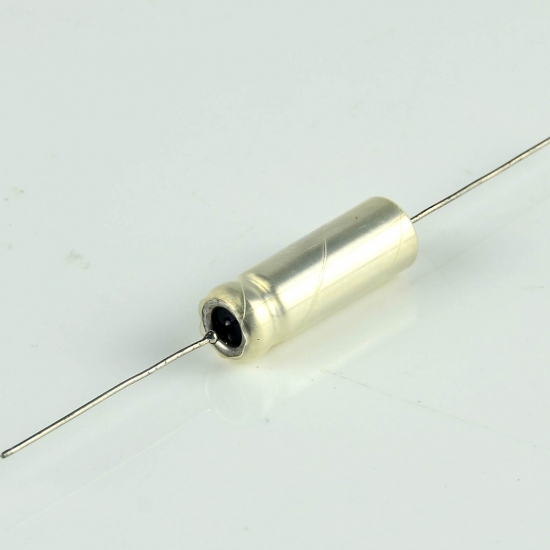

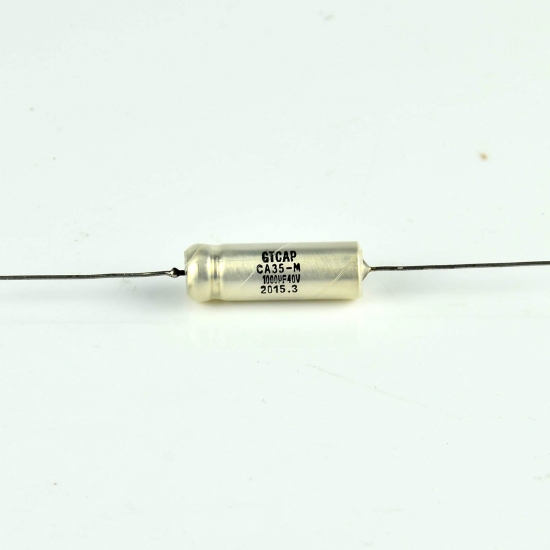

GCA35 Wet
Tantalum Capacitor
(MIL,hermetic sealed)
Brief Introduction
● GCA35 Series silver-cased ,hermetic sealed, with insulation sleeve, military standard wet tantalum electrolytic capacitors.
● With polar axial leads are characterized in stable and excellent performances, and high reliability.
● GCA35 Series meets the requirements of Chinese military standard QZJ840628,Q/RT0.464.151-2004
● Widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.
General Characteristics
● Operating Temperature Range: -55℃～+125℃(>85℃ with rated voltage derating);● Capacitance range: 1μF ~1500μF
● Capacitance Tolerance: K=±10% ,M=±20%
● Voltage: 6.3V~125V
● DC Leakage:
at +20℃, I0≤0.0008CRVR or 1μA (Whichever is greater);
at +85℃ and +125℃, I0≤0.006 CRVR or 6μA (Whichever is greater)

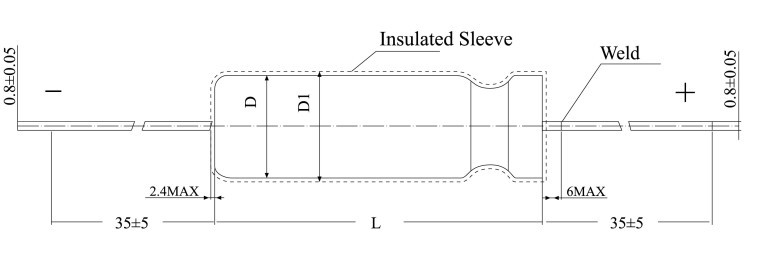

Table
1
|
Code |
Max. Weight (g) |
Uninsulated |
With insulated sleeve |
||
|
D±0.5(mm) |
L±2 (mm) |
D±0.5(mm) |
L±2 (mm) |
||
|
1 |
4 |
5 |
14 |
5.8 |
16 |
|
2 |
5 |
6 |
16 |
6.8 |
18 |
|
3 |
7 |
8 |
16 |
8.8 |
18 |
|
4 |
10 |
8 |
22 |
8.8 |
24 |
|
5 |
14 |
10 |
22 |
10.8 |
24 |
|
6 |
17 |
10 |
25 |
10.8 |
27 |
