GTCAP Hybrid Super Capacitor Catalog
GTCAP Hybrid super capacitor made of Li-ion and active carbon, voltage up to 3.6V,3.8V and 4.0V, capacitance up to 16000F,60000F. It is perfect capacitor energy storage part to replace battery,espectially in solar LED light,carcorder and smart meters. This capacitors are very long life,very good performance on voltage hold and maintenance free.

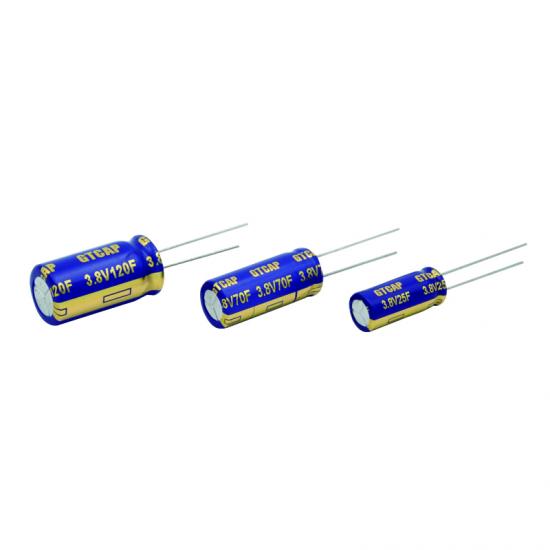

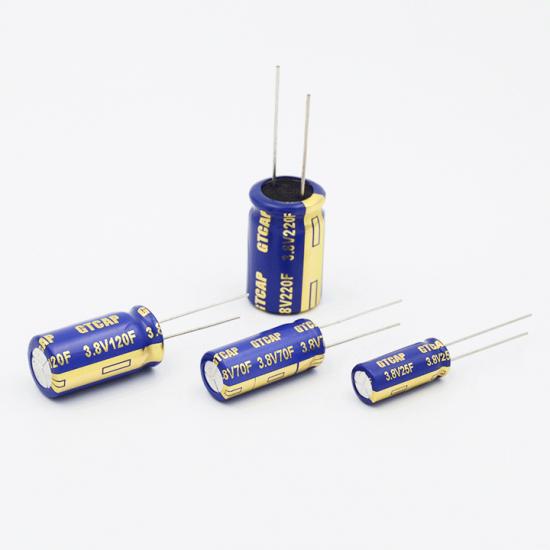

Hybrid Super Capacitor —— Radial Wire Leads
● Optimum Working Voltage Range: 3.8V~2.5V
● Capacitance: 10F, 25F, 30F, 70F, 120F, 220F, 450F, 650F,
● Cycle life: 500,000 times
● Operating temperature: -25℃~+70℃/+85℃（3.5V）
● High energy density.
● Widely use in solar LED light, smart electric meters, gas meters, water meters, energy meters for back up power to record the data and remote meters reading and so on

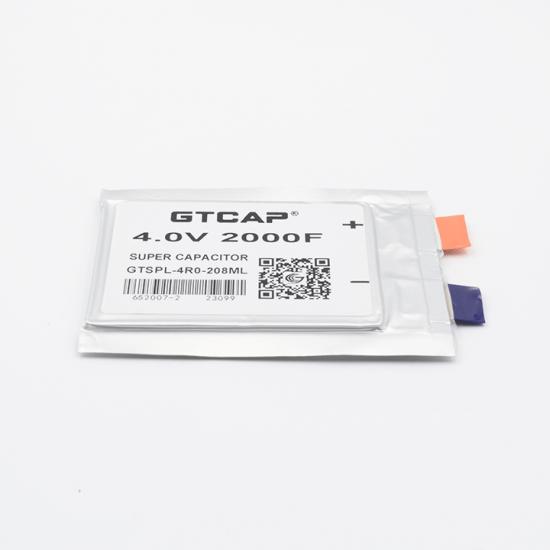

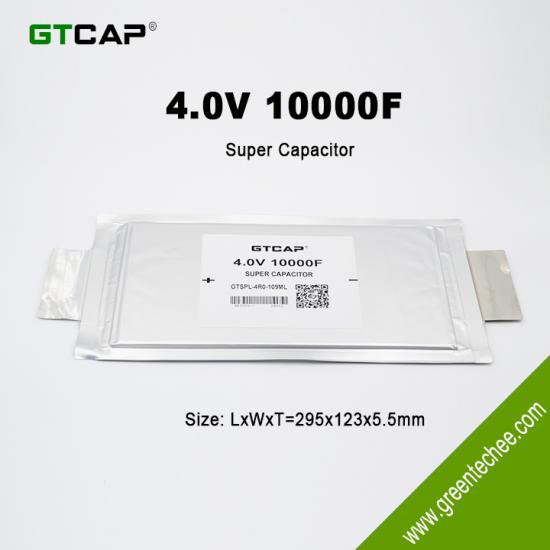

Hybrid Super Capacitor —— Soft Roll Lug
● Optimum Working Voltage Range: 4.0V~2.5V
● Capacitance: 1000F, 2000F, 3200F, 6000F, 10000F, 16000F
● Cycle life: 50,000 times
● Operating temperature: -25℃~+55℃
● High energy density.
● Widely use in UPS, solar power system, elevator starting, medical equipment and so on.
10F 3.8V Li-ion Hybrid Super Capacitors
GTCAP Radial Type Graphene Hybrid Super Capacitor 25F 3.8V

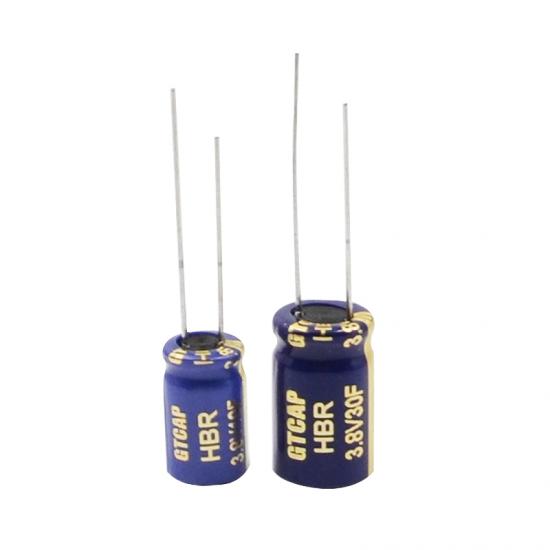

Graphene Hybrid Ultracapacitor 30F 3.8V with High Energy Density
GTCAP Ultracapacitor 70F 3.8V Hybrid Super Capacitors
Hybrid Super Capacitor
