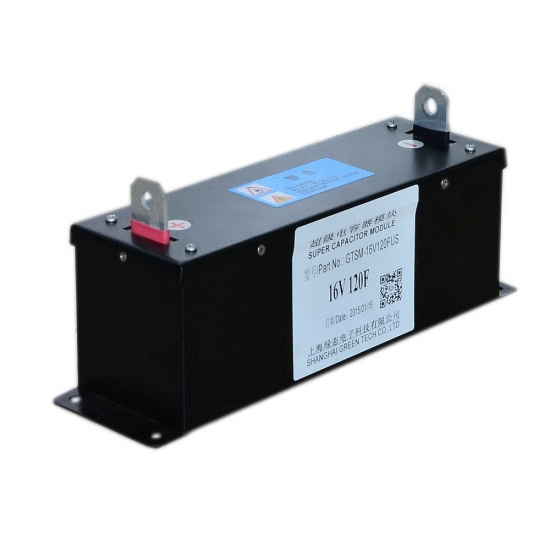

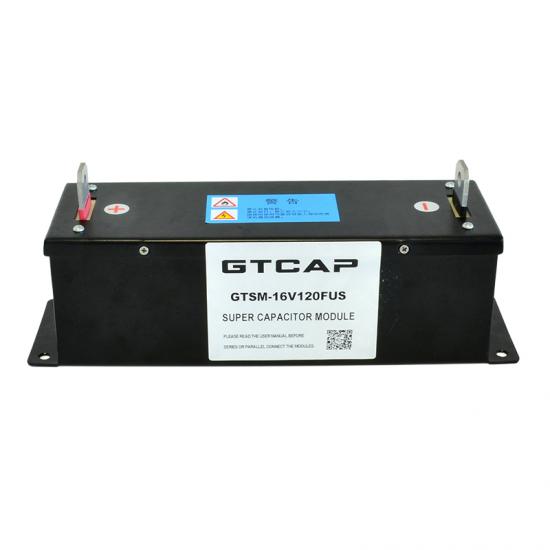

16V 120F Super Capacitor module for Engine starting
Feature
● Low ESR,high power● More than 500,000 times cycle life

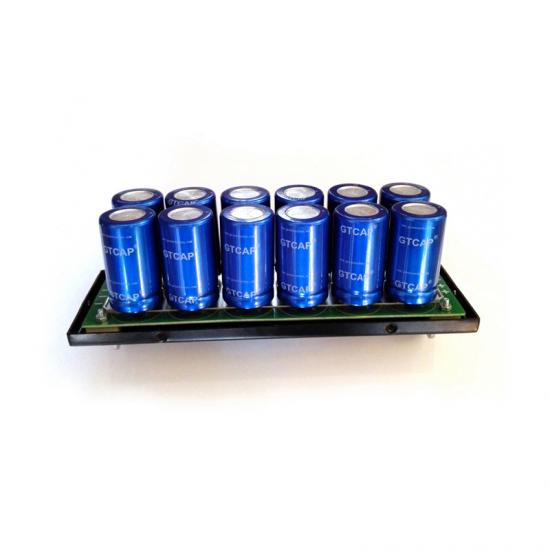

● With unit balancing PCB
● Hard-packed, Screw terminal M5
Aapplication
● Telecommunication● UPS
● Electrical power system
● Automotive start assist
● Transportation
Brief Data
Cap.
Vol.
Max. ESR(mΩ)
Max. Continuous Current
(A,ΔT=40℃)
Max.Peak Current
1~3 s
(A)
Leakage current(mA)
@25℃ after 72hrs self discharge
Weight
(kg)
AC
1KHz
DC
GTSM-16V120FUS
120F
16V
10
12
70
460
27
2.0
Rated Voltage
16VDC
Capacitance Tolerance
0%~+20% (25℃)
Relative Humidity
≤90%
Operating Temperature -40℃~+65℃
△C< 5% initial capacitance(25°C),△ESR< 150% initial ESR(25℃)
Cycle Life (full charge to half discharge 500,000 times
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
Use life (1000hrs @65℃@16VDC)
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
Storage life (2years @70°C non-load)
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃)
|
Cap. |
Vol. |
Max. ESR(mΩ) |
Max. Continuous Current (A,ΔT=40℃) |
Max.Peak Current 1~3 s (A) |
Leakage current(mA) @25℃ after 72hrs self discharge |
Weight (kg) |
||
|
AC 1KHz |
DC |
|||||||
|
GTSM-16V120FUS |
120F |
16V |
10 |
12 |
70 |
460 |
27 |
2.0 |
|
Rated Voltage |
16VDC |
|
Capacitance Tolerance |
0%~+20% (25℃) |
|
Relative Humidity |
≤90% |
|
Operating Temperature -40℃~+65℃ |
△C< 5% initial capacitance(25°C),△ESR< 150% initial ESR(25℃) |
|
Cycle Life (full charge to half discharge 500,000 times |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃) |
|
Use life (1000hrs @65℃@16VDC) |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃) |
|
Storage life (2years @70°C non-load) |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25℃) |
