16V 500F super capacitor module with large power,extremely low ESR

Green Tech manufacture and export GTCAP brand 16V 500F super capacitor module with large powera and extremely low ESR
  • Brand:

    GTCAP
  • Model:

    GTSM-16V500FUS
  • value:

    500F
  • votage:

    16V
  • Feature:

    Large power, compact, extremely low ESR
  • grade:

    A
  • quality guarantee:

    1 year
  • Applications:

    Pitching control system of wind turbine generator, EV/HEV, solar energy conversion system, hybrid drive trains, mass transportation braking energy recovery system, UPS/DVC, heavy duty machinery, locom
  • product origin:

    China
Products description

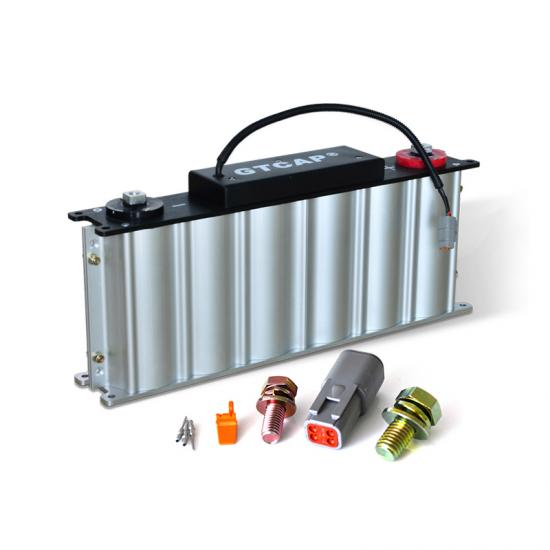

16V 500F super capacitor module with large power

——Customizable——



Features & Benefits

● Compact, fully enclosed splash proof design

● Highest power performance

● Individually balanced cells

● Over 1,000,000 duty cycles

● Ultra-low internal resistance


Typical Applications

● Automotive

● Industrial

● Telecommunications

● Railway transportation

● Uninterruptible Power Supplies(UPS)


Brief Data

apacitance
    Nominal capacitance 500 F
    Capacitance tolerance +20% / -0%
 Voltage
    Rated voltage 16 V
    Absolute Maximum Voltage 17 V
    Maximum Series Voltage 750 V
 Resistance
    ESR, DC 1.8 mΩ
 Current
    Maximum continuous current (ΔT=40℃) 100 A
    Maximum peak current, 1 sec. 2,275 A
    Leakage current (Ic) 5.2 mA
 TEMPERATURE
 Operating temperature range
 (Cell case temperature)
-40℃ to +65℃
 Storage temperature range -40℃ to +70℃
