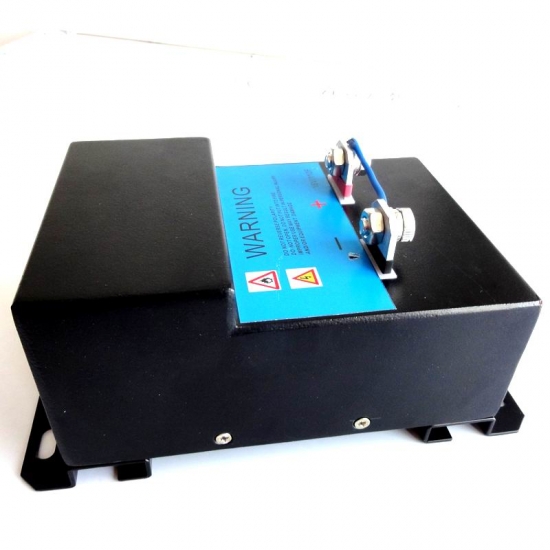

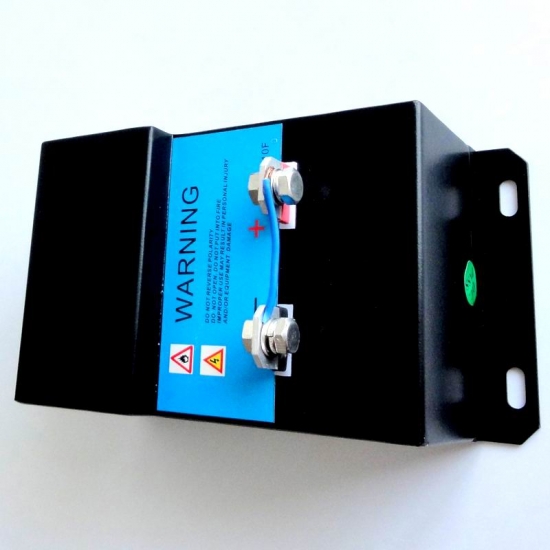

16V 110F Super Capacitor module for Engine starting
Feature
● Low ESR● More than 1,000,000 times cycle life
● With unit balancing PCB
● Hard-packed, Screw terminal
Aapplication
● Telecommunication● UPS
● Electrical power system
● Automotive start assist
● Industrial
● Transportation
Specification Data
GT PN.
cap
Max. ESR
(mΩ)
Max. Continuous Current
(A,ΔT=15℃)
Max.Peak Current
1second (A)
Leakage current(mA)
@25℃ after 72hrs self discharge
Energy storage
(Wh)
Energy Density
(Wh/kg)
Weight
(kg)
GTSM-16V110FUS
110F
AC
DC
50
650
1.5
3.9
1.12
3.5
5.0
5.6
Rated Voltage
16VDC
Max. Operating Voltage
16.2VDC
Capacitance Tolerance
±20% (25°C)
Operating Temperature
-40°C~+65℃
Storage Temperature
-40°C~+70℃
Use life
10 years
Cycle life
After 1,000,000 times of cycles between U0, 1/2U0 at RT,︱△C/C︱≤30%,ESR≤4 times of specified ESR(25℃)
