Super Capacitor Module 48V Applied in Hybrid Electric Vehicle

2017-08-09

Super Capacitor Modules For Transportation

Regenerative Braking / Energy Recovery Hybrid Electric Vehicle

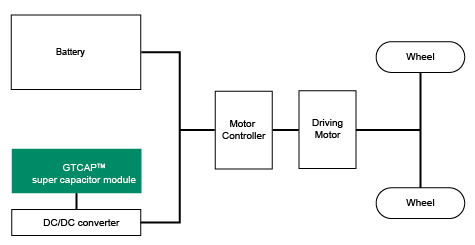

GTCAP super capacitor modules are continuously applied to electric vehicle as a substitute of batteries. In picture 1 that shows the hybrid electric vehicle structure, GTCAP super capacitors are used to capture braking energy, assit vehicle start and offer large power qucikly to climing.

In regenerative systems, energy is captured and re-used at a later time. The energy capture comes from the vehicle braking system and is subsequently used in acceleration or for the support of accessory loads in vehicle architectures. These events are typically short in duration (lasting just seconds to a few minutes) but very high in power.

Super capacitor modules provide an ideal solution as the energy storage device for these applications. With their high power capability, super capacitor modules are more efficient at recapturing and storing energy, especially when it comes in bursts.

Transportation

1. Electri Power Motor;

2. Porttal Shaft With Two Electric Motors;

3. High Voltage Cable;

4. Electrical Flywheels Battery;

5. Power Electronics.

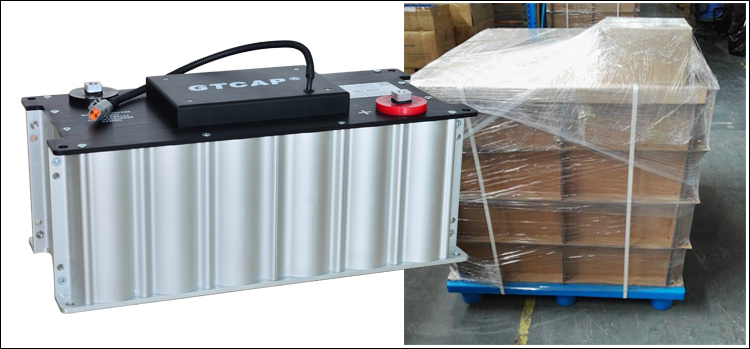

Mainly Applied Model: GTSM-48v-165FUS

Mainly Applied Model: GTSM-48v-165FUS

48V ultracapcitor modules

Advantages of GTCAP Super Capacitor Modules

Item

GTCAP Super Capacitor Modules

Chemical Battery

Maintance

free

need

Energy Type

green

not green

Life Time

1,000,000 times

200~1,000 times

Charge Speed

0.3s~15 mins

3~10 hrs

Charge/Discharge Efficient

98%

70%

Power Density

1,000~10,000 W/KG

300 W/KG

Working Temperature

-40+70

-20+60

RateCapacitance Reduction (0)

10%

90%

Regenerative Energy

70%

5%

More information: www.greentechee.com
