GTCV11 High Voltage Silver Mica Paper Capacitor 10KV, 15KV, 30KV

Green Tech manufacture and export GTCAP CV11 high voltage silver mica paper capacitor 10KV, 15KV, 30KV


  • Brand:

    GTCAP
  • shipping port:

    Shanghai
  • Model:

    CV11
  • value:

    0.004μF~0.1μF
  • votage:

    2KV~30KV
  • Feature:

    high voltage,big current,high frequency
  • MOQ:

    10pcs
  • Payment:

    T/T,L/C, Western Union,Paypal,Alipay
  • Color:

    Yellow
  • Lead Time:

    15~30days
  • product origin:

    China
Products description

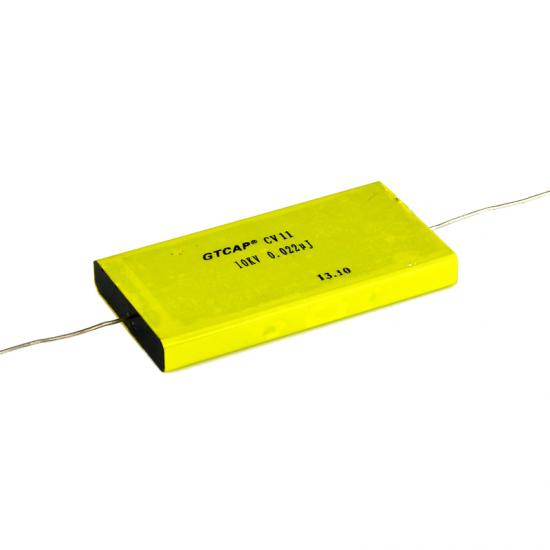

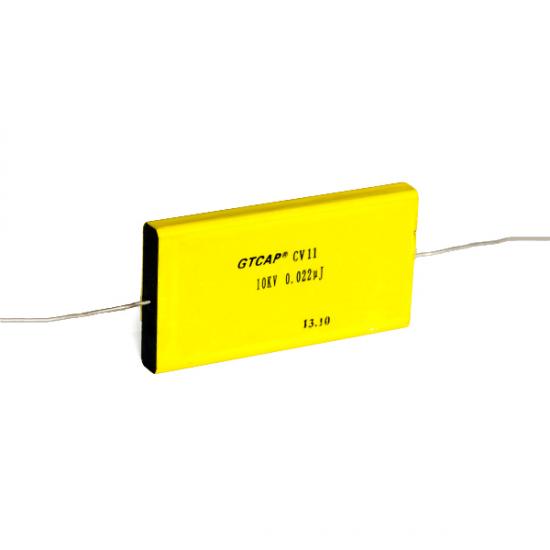

GTCV11 Silver Mica Paper Capacitor

(High Voltage,high frequency)





Feature:

● Using the best mica paper as material,dipping high temperature epoxy resin.
● High frequency,high voltage and big current.
● Very stable at high frequency circuit.


Application:

● Our CV11 series silver mica pcapacitors are suitable to high frequency, high voltage, big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc.
● Widely use in satellite, aerospace, ship, medical equipment, oil down-hole equipment, welding machine,metallurgy equipment etc.



General Characteristics

● Temperature Range: -40℃~+85℃
● Capccapacitance Tolerance: ±5%,±10%,±20%
● Relative Humidity: 80%, at +40℃ can be short time at 95~98%.
● Atmospheric pressure: 6x104Pa~1.04x105Pa
● Vibration: frequency 10~500Hz, acceleration: 10g
● Working voltage: 2KV~30KV
● Working current: 5A~50A
● DC test voltage: at room termperature, rated voltage U0≤10KV capacitor, load 2 times working voltage, rated voltage 10KV﹤U0≤30KV capacitor,load 1.5 times working voltage, Rated voltage U0﹥30KV capacitor,load 1.2 times working voltage, after keep 1 minute,no breakdown and flashover.
● Insulation resistance(R): normal climate
  Capacitance C ≥ 0.1μF R≥1000MΩ
  Capacitance C< 0.1μF R>5000MΩ
● Dissipation factor: tgδ≤4×10-3(1KHz), Pass D.C. rated voltage test.
