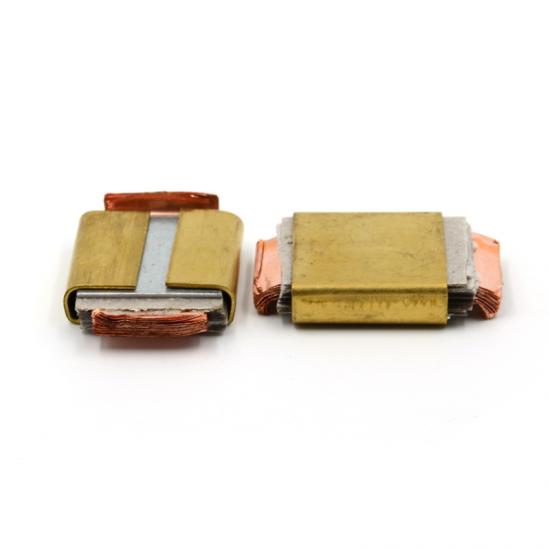

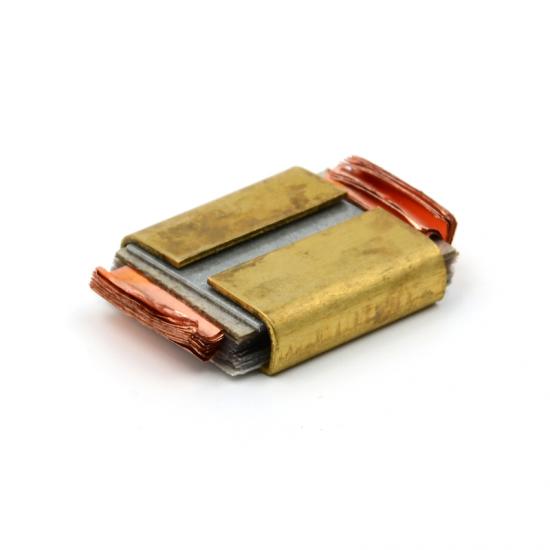

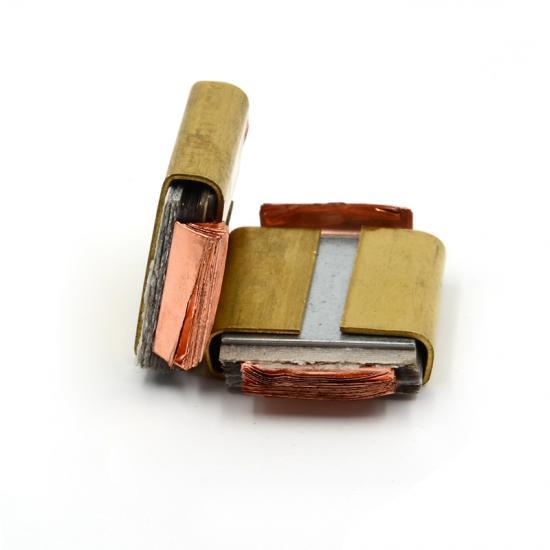

GTCYG High Frequency Mica Capacitor
(For Induction Heater)
Brief Introduction
● This mica capacitor is silver-layer coated, can be used at high frequency 1KHz~1MHz and big current 200A.● Operating Temperature: 0℃~50℃
● Relative Humidity: 35%~70%
● Suit Equipment: 3kw----10kw high frequency equipment.;
● Function: High frequency resonance.
Feature
|
No. |
Item |
Standard |
Test Method |
|
1 |
Frequency |
≤800KHz |
Electrical Bridge |
|
2 |
Current |
≤200A |
Ampere Meter |
|
3 |
Voltage |
≤1000V |
Puncture Tester |
|
4 |
Capacitance |
0.01μF~ 0.1μF |
Capacitance Meter |
|
5 |
Insulate Resistance |
>500MΩ |
Insulation Tester |
|
6 |
Dissipation Factor |
≤0.5 |
|
Data Record
Part Number: GTCYG-1KV-0.052μF
|
NO. |
C （μF） |
tgδ （≤N X10-3） |
U（KV/min） |
Size |
|
1 |
0.052 |
0.3 |
1.5 |
46*31*9mm |
