High Voltage High Frequency Red Copper Mica Capacitor For Radar

High voltage and high frequency red copper silver mica paper capacitor is best choice for radar.
  • Brand:

    GTCAP
  • shipping port:

    Shanghai
  • Model:

    CVG
  • value:

    470~10000000pF
  • votage:

    500~100,000V
  • Feature:

    high voltage,high frequency
  • MOQ:

    10pcs
  • Payment:

    T/T,L/C, Western Union,Paypal,Alipay
  • Lead Time:

    20~30days
  • product origin:

    China
Products description

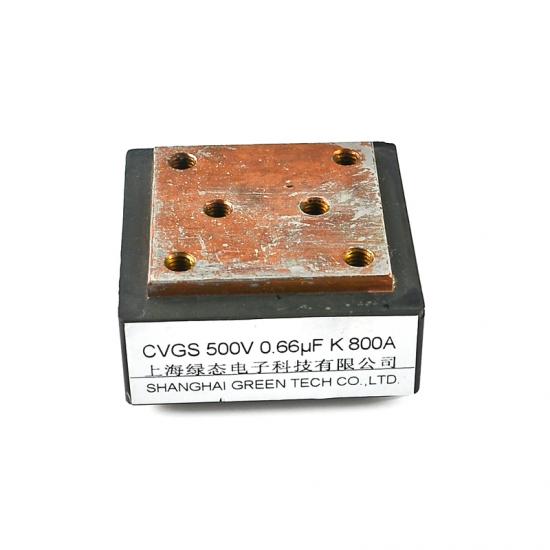

High Voltage High Frequency Red Copper Mica Capacitor
(High frequency,high voltage, customized product.)



Feature

● Using the best mica paper 511 as material,dipping high temperature epoxy resin.
● High frequency,high voltage and big current.
● Very stable at high frequency circuit.

Application

It is the best choice for radar because of high frequency and high voltage

General Characteristics

● Temperature Range: -40℃~+85℃
● Capacitance Tolerance: ±5%,±10%,±20%
● Relative Humidity: 80%, at +40℃ can be short time at 95~98%.
● Atmospheric pressure: 6x104Pa~1.04x105Pa
● Vibration: frequency 10~500Hz, acceleration: 10g
● Working voltage: 0.5KV~100KV
● Working current: 5A~50A
● DC test voltage: at room termperature,rated voltage U0≤10KV capacitor, load 2 times working voltage, Rated voltage 10KV﹤U0≤30KV capacitor,load 1.5 times working voltage, Rated voltage U0﹥30KV capacitor,load 1.2 times working voltage, After keep 1 minute,no breakdown and flashover.
● Insulation resistance(R): normal climate
  Capacitance C ≥ 0.1μF R≥1000MΩ
  Capacitance C< 0.1μF R>5000MΩ
● Dissipation factor: tgδ≤4×10-3(1KHz), Pass D.C. rated voltage test.
