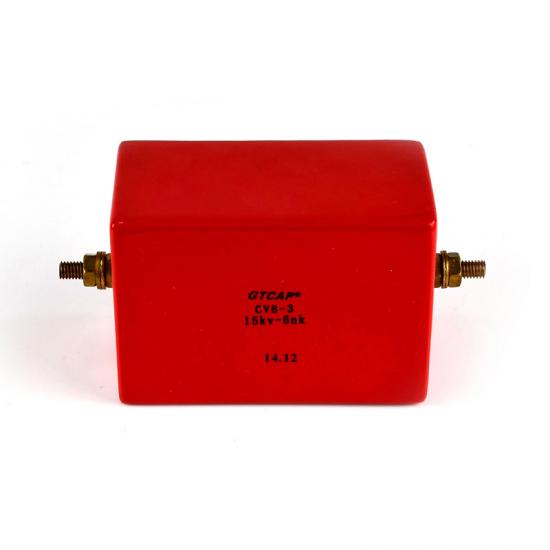

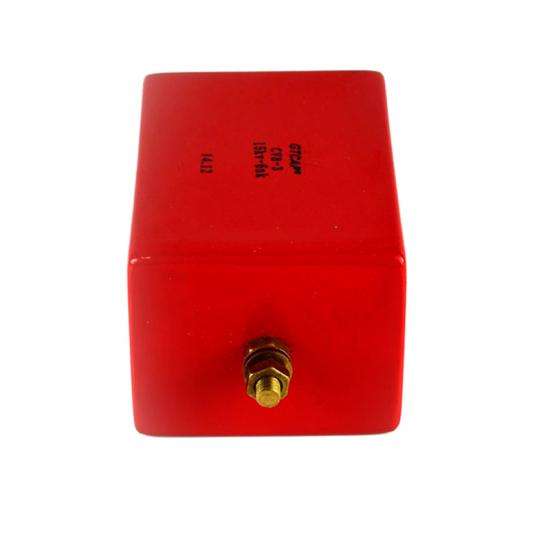

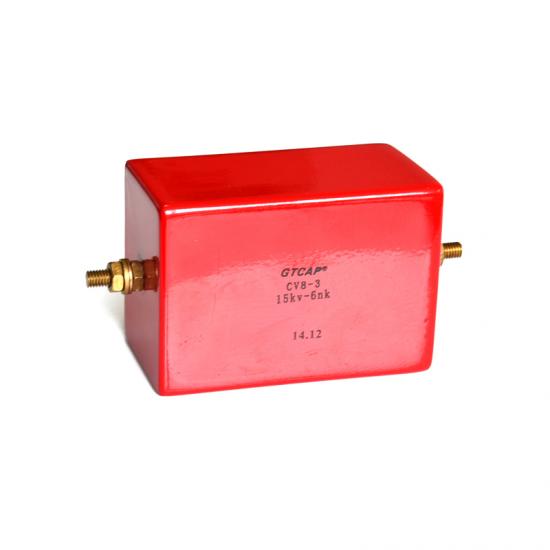

GTCV8 Big Current Silver Mica Capacitor, High Voltage 2KV~30KV

Grenn Tech manufacture and export GTCV8 series mica pcapacitors, they are suitable to high frequency,high voltage, big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc

  • Brand:

    GTCAP
  • shipping port:

    Shanghai
  • Model:

    CV8
  • value:

    0.005μF~0.1μF
  • votage:

    2KV~30KV
  • Feature:

    High frequency, high voltage and big current
  • MOQ:

    10pcs
  • Payment:

    T/T,L/C, Western Union, Paypal, Alipay
  • Color:

    Red
  • Lead Time:

    15~30days
  • product origin:

    China
Products description

GTCV8 Mica Paper Capacitor

(Big current,high voltage)





Feature:

● Using the best mica paper as material,dipping high temperature epoxy resin.
● High frequency, high voltage and big current.
● Very stable at big current circuit.

Application:

● Our GTCV8 series silver mica pcapacitors are suitable to high frequency, high voltage, big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc.
● Widely use in satellite, aerospace, ship, medical equipment, oil down-hole equipment, welding machine, metallurgy equipment etc.

General Characteristics

● Temperature Range: -40℃~+85℃
● Capacitance Tolerance: ±5%,±10%,±20%
● Relative Humidity: 80%, at +40℃ can be short time at 95~98%.
● Atmospheric pressure: 6x104Pa~1.04x105Pa
● Vibration: frequency 10~500Hz, acceleration: 10g
● Working voltage: 2KV~30KV
● Working current: 5A~50A
● DC test voltage: at room termperature,rated voltage U0≤10KV capacitor, load 2 times working voltage, Rated voltage 10KV﹤U0≤30KV capacitor,load 1.5 times working voltage, Rated voltage U0﹥30KV capacitor,load 1.2 times working voltage, After keep 1 minute,no breakdown and flashover.
● Insulation resistance(R): normal climate
   Capacitance C ≥ 0.1μF R≥1000MΩ
   Capacitance C< 0.1μF R>5000MΩ
● Dissipation factor: tgδ≤4×10-3(1KHz), Pass D.C. rated voltage test.
