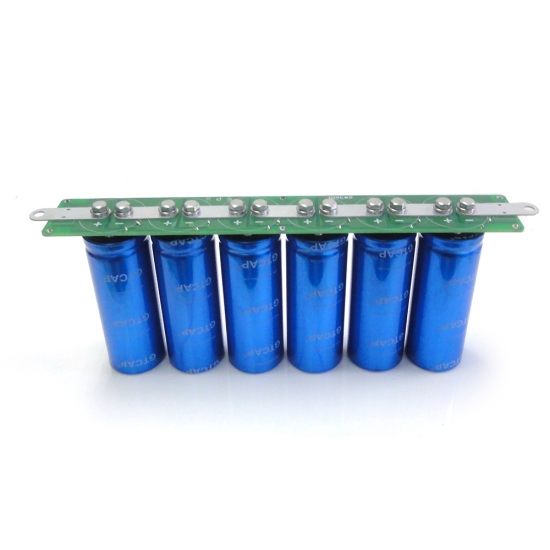

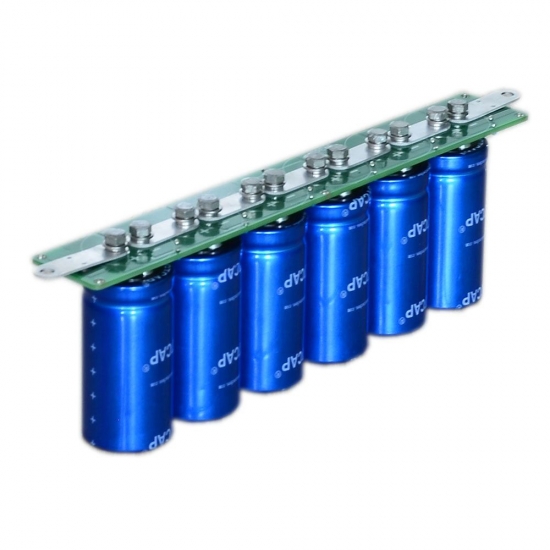

Super Capacitor Module 16V 100F for Car Cold Start
Feature
● Low ESR,high power● More than 500,000 times cycle life
● With unit balancing PCB
● Hard-packed, Screw terminal M5
Aapplication
● Engine start: Telecommunications equipment,Tank,Truck,Car cold start;● Energy recovery: Electric train,Hybrid bus, Elevator
● Back up power: Construction equipment, UPS, Heavy duty transportation,Cranes, Mining equipment, Electronic bicycle
● New energy resources: solar LED street light. wind turbine pitch control,Solar electronic bicycle,micro-grid.
Specifiaction Data
GT PN.
Cap.
Vol.
Max. ESR(mΩ)
Max. Continuous Current
(A,ΔT=40℃)
Max.Peak Current
1~3 s
(A)
Leakage current(mA)
@25°C after 72hrs self discharge
Weight
(kg)
AC
1KHz
DC
GTSM-16V100FUS
100F
16V
20
25
65
228
0.9
1.42
|
Rated Voltage |
16VDC |
|
Capacitance Tolerance |
0%~+20% (25°C) |
|
Relative Humidity |
≤90% |
|
Operating Temperature -40°C~+65°C |
△C< 5% initial capacitance(25°C),△ESR< 150% initial ESR(25°C) |
|
Cycle Life (full charge to half discharge 500,000 times |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25°C) |
|
Use life (1000hrs @65°C@16VDC) |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25°C) |
|
Storage life (2years @70°C non-load) |
△C< initial capacitance 30%,△ESR< initial ESR 200%(25°C) |
