Customizable Engine Start Super Capacitor Module 16V 500F

Green Tech offer high qualtiy Customizable Engine Start Supercapacitor Module 16V 500F
  • Brand:

    GTCAP
  • shipping port:

    Shanghai
  • Model:

    GTSM-16V100FUS
  • value:

    100F
  • votage:

    16V
  • Feature:

    Large power,small size, very low ESR,Hard-packed
  • MOQ:

    10pcs
  • Payment:

    T/T,L/C, Western Union,Paypal,Alipay
  • Color:

    Blue
  • Lead Time:

    7~30days
Products description

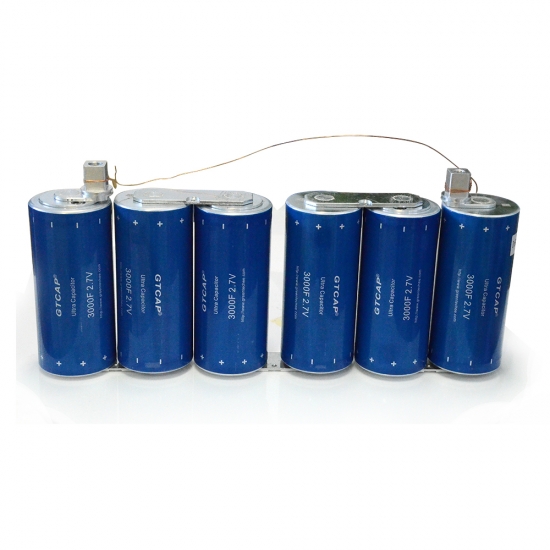

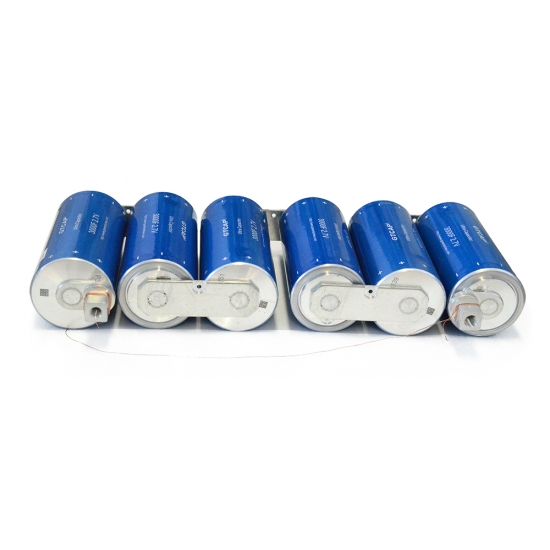

Engine Start Supercapacitor Module 16V 500F



Green Tech Technologies offers 16V Ultracapacitor / Supercapacitor Modules for a wide range of industrial, transportation, and heavy duty applications.

The 16-volt ultracapacitor is designed to provide cost-effective solutions for UPS, telecommunications, and other lighter duty industrial electronics applications (1,000,000 discharge-recharge cycles).

Green Tech's ultracapacitors / supercapacitors are available in 10-, 12-, 20-, 24-, 32-, 16-, 48-, 64-, 75-, 90- and 230 volts modules offering over 1 million duty cycles. These ultracapacitor modules are useful for a diverse range of energy storage and power delivery requirements, such as automotive, transportation, UPS, renewable energy, telecommunications, mining, heavy duty transportation and equipment, as well as applications operating under harsh temperature, humidity, and vibration conditions.



Capacitance
    Nominal capacitance 500 F
    Capacitance tolerance 20%/0%
Voltage
    Rated voltage 16 V
    Absolute Maximum Voltage 17 V
    Maximum Series Voltage 750 V
Resistance
    ESR, DC 1.8 mΩ
Current
    Maximum continuous current (ΔT=40) 100 A
    Maximum peak current, 1 sec. 2,275 A
    Leakage current (Ic) 5.2 mA
TEMPERATURE
Operating temperature range -40 to +65
 (Cell case temperature)
Storage temperature range -40 to +70
